1. Main Features
1.1. The whole machine adopts ergonomic design. It can better meet the requirements of the jewelry industry for precision, beauty, stable performance, long time and continuous processing.
1.2. The internal space is large, which is convenient for placing tools and fixtures.
1.3. Equipped with electric focusing mechanism, digital scale reading display, laser parameter adjustment switch, the operation is more stable.
1.4. It is convenient to replace the dust filter, clean the work area, and recover the welding slag.
1.5. High-brightness LED ring star light and 10 times microscope, the welding position can be observed more clearly.
1.6. The light spot is more accurate and meets the requirements of precision welding.
2. Welding materials
Platinum, karat gold, silver, titanium, stainless steel, copper, aluminum, other metals and alloys.
3. Application areas
It is widely used in precision welding of various micro parts, such as: jewelry, electronics, dentistry, clocks, and military industries.
Machine dimension

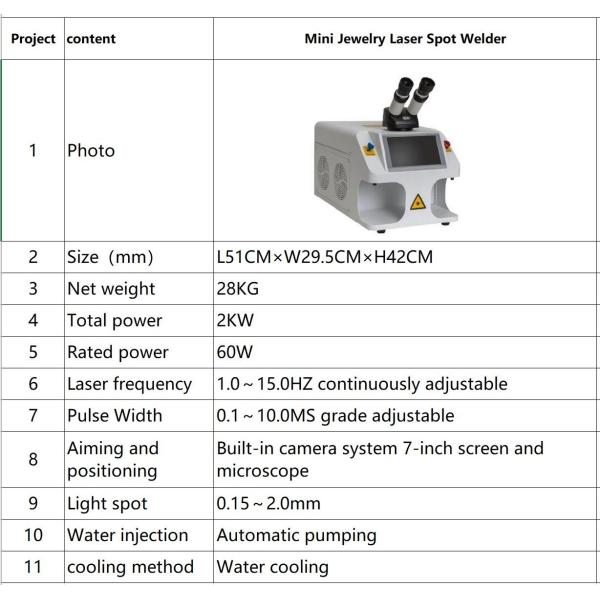

Further technical details
| | RL-Y60 |
| | 1064nm |
| | 60W |
Spot Diameter Adjusting Scope | ±3.0mm |
| | 40J |
| | 1.0~10.0Hz Continuously Adjustable |
| | CCD and Microscope |
| | AC220V±10% 50Hz/60Hz |
Display touch screen mounting dimensions | 137*190(mm) |
| | L 510*W 295*H 395(mm) |
| | Built-in water cooled |
Spotlight Cavity Reflector | Metal Cavity |
Video
4. Advantages of our machines.
1) New Design: The pure white design highlights the realism of beauty.
2) Real manufacturer: 80% of jewelry laser welding machine parts are designed by Riselaser, including body, laser source, YAG crystal, cavity, etc. This gives us strong customization capabilities, trustworthy quality and reliable after-sales service.
3) Simple operation: the control board and the CCD camera are combined into one.
